Examples

Plotting

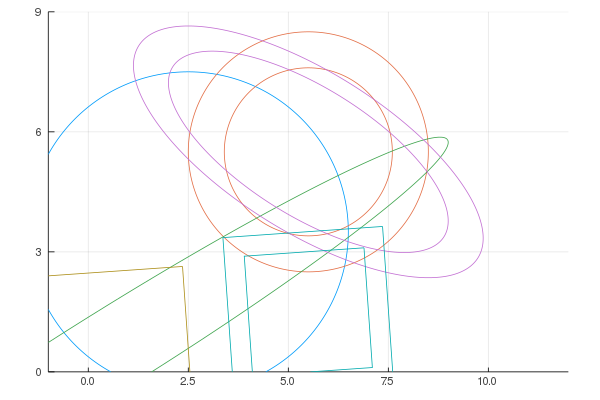

We have recipes for all our aperture types, so you can easily create overlays on your images.

using Photometry
using Plots

plot(CircularAperture(2, 3, 4), c=1, xlims=(-1, 12), ylims=(0, 9))
plot!(CircularAnnulus(5, 5, 2.1, 3), c=2)
plot!(EllipticalAperture(0, 0, 10, 1, 32), c=3)
plot!(EllipticalAnnulus(5, 5, 4, 5, 2, -32), c=4)
plot!(RectangularAperture(0, 0, 4, 4, 4), c=5)
plot!(RectangularAnnulus(5, 1, 3, 4, 4, 4), c=6)

Simple Stars

Here is an example where we will find aperture fluxes for stars from M67. The dataset is provided as part of the astropy/photutils-datasets repository.

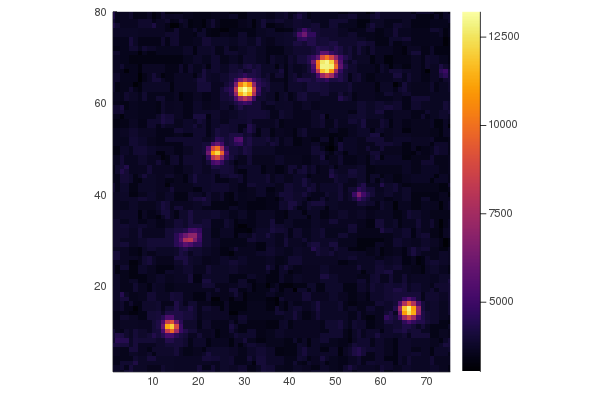

Let's start by downloading and showing our image

using Photometry
using Plots
using FITSIO

# Load data in
hdu = FITS(download("https://github.com/astropy/photutils-datasets/raw/master/data/M6707HH.fits"))
image = read(hdu[1])'
chunk = image[71:150, 81:155]

# Plot
default(aspect_ratio=1, xlims=(1, size(chunk, 2)), ylims=(1, size(chunk, 1)))

heatmap(chunk)

Now let's add some apertures!

positions = [
    [47.5 , 67.5],
    [29.5 , 62.5],
    [23.5 , 48.5],
    [17.5 , 29.5],
    [13.25, 10.5],
    [65.5 , 14.0]
]

radii = [3, 3, 2.7, 2, 2.7, 3]

aps = CircularAperture.(positions, radii)

6-element Array{CircularAperture{Float64},1}:
 CircularAperture(47.5, 67.5, r=3.0)
 CircularAperture(29.5, 62.5, r=3.0)
 CircularAperture(23.5, 48.5, r=2.7)
 CircularAperture(17.5, 29.5, r=2.0)
 CircularAperture(13.25, 10.5, r=2.7)
 CircularAperture(65.5, 14.0, r=3.0)

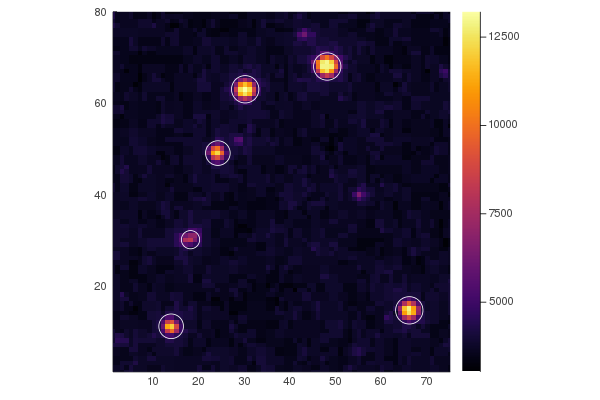

now let's plot them up

heatmap(chunk)
plot!.(aps, c=:white)

and finally let's get our output table for the photometry

table = aperture_photometry(aps, chunk)

6 rows × 4 columns

Stars with Spatial Background Subtraction

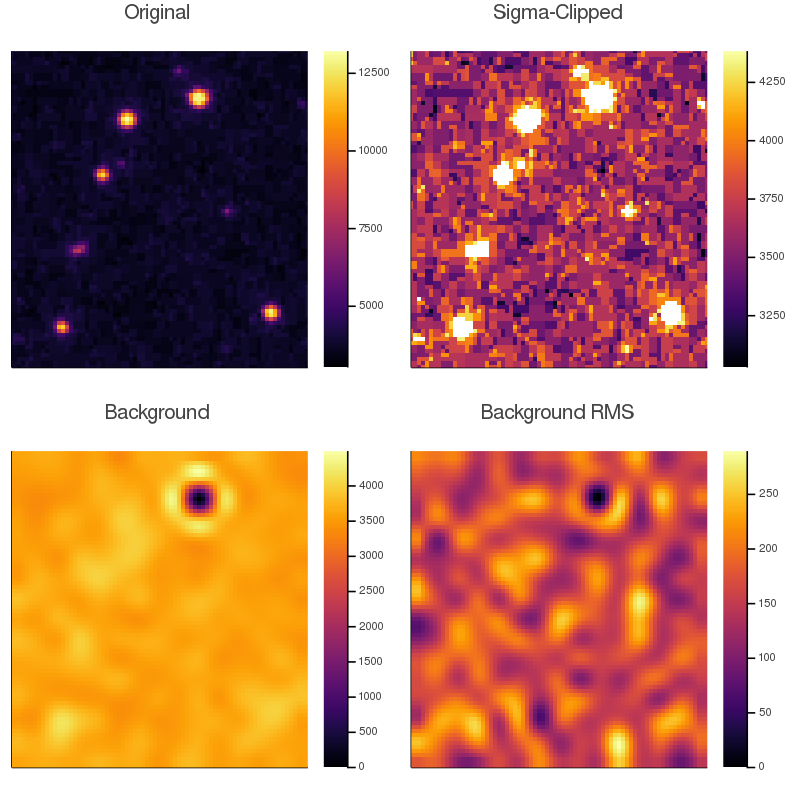

This example will be the same as Simple Stars but will add background estimation using the tools in Background Estimation

clipped = sigma_clip(chunk, 1, fill=NaN)
# Estimate 2D spatial background using meshes of size (5, 5)
bkg, bkg_rms = estimate_background(clipped, 5)

plot(layout=(2, 2), size=(800, 800), ticks=false, link=:all)
heatmap!(chunk, title="Original", subplot=1)
heatmap!(clipped, title="Sigma-Clipped", subplot=2)
heatmap!(bkg, title="Background", subplot=3)
heatmap!(bkg_rms, title="Background RMS", subplot=4)

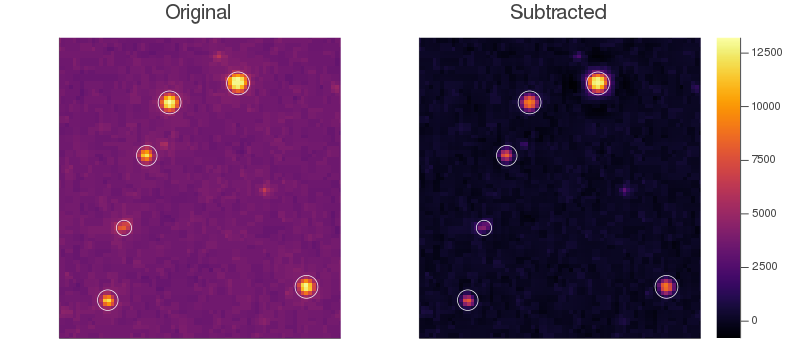

Now, using the same apertures, let's find the output using the background-subtracted image

plot(layout=(1, 2),
    clims=(minimum(chunk .- bkg),
    maximum(chunk)),
    size=(800, 350),
    ticks=false,
    link=:all)
heatmap!(chunk, title="Original", colorbar=false, subplot=1)
heatmap!(chunk .- bkg, title="Subtracted", subplot=2)
plot!.(aps, c=:white, subplot=1)
plot!.(aps, c=:white, subplot=2)

table = aperture_photometry(aps, chunk .- bkg, bkg_rms)

6 rows × 4 columns
