Plotting

DustExtinction.jl is designed to work automatically with many of Makie.jl's core plotting functions, which can then be composed together to form more complex figures. Below we show a few practical applications.

Model plot example

For a given DustExtinction.ExtinctionLaw, Makie's usual PointBased plotting functions (e.g., lines, scatter, stairs, etc.) should work right out-of-the-box:

using DustExtinction, CairoMakie

model = CCM89()

CCM89(3.1)

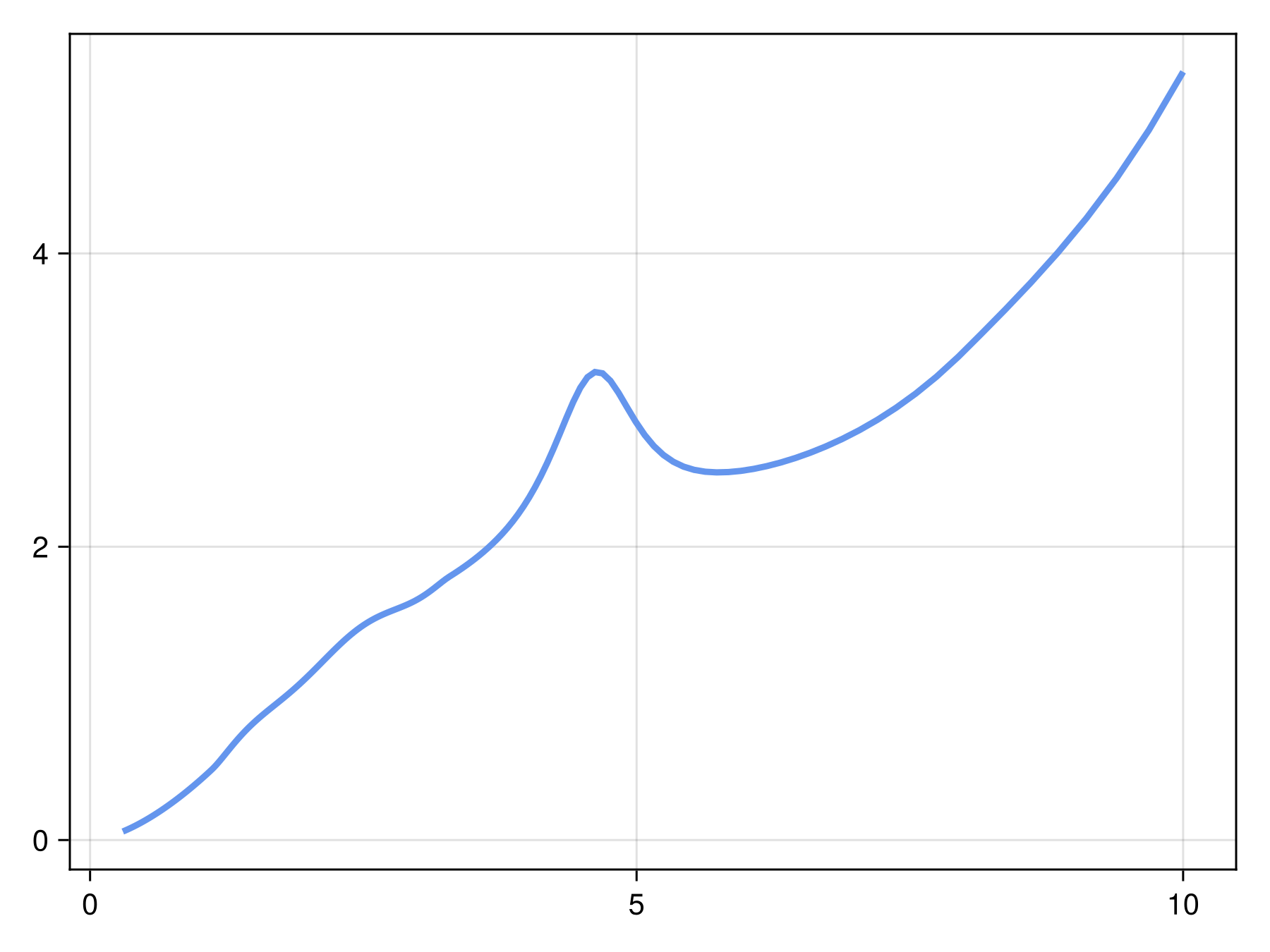

# Automatic limits defined by model
lines(model; linewidth=3, color=:cornflowerblue) # Or plot(model; [plot options])

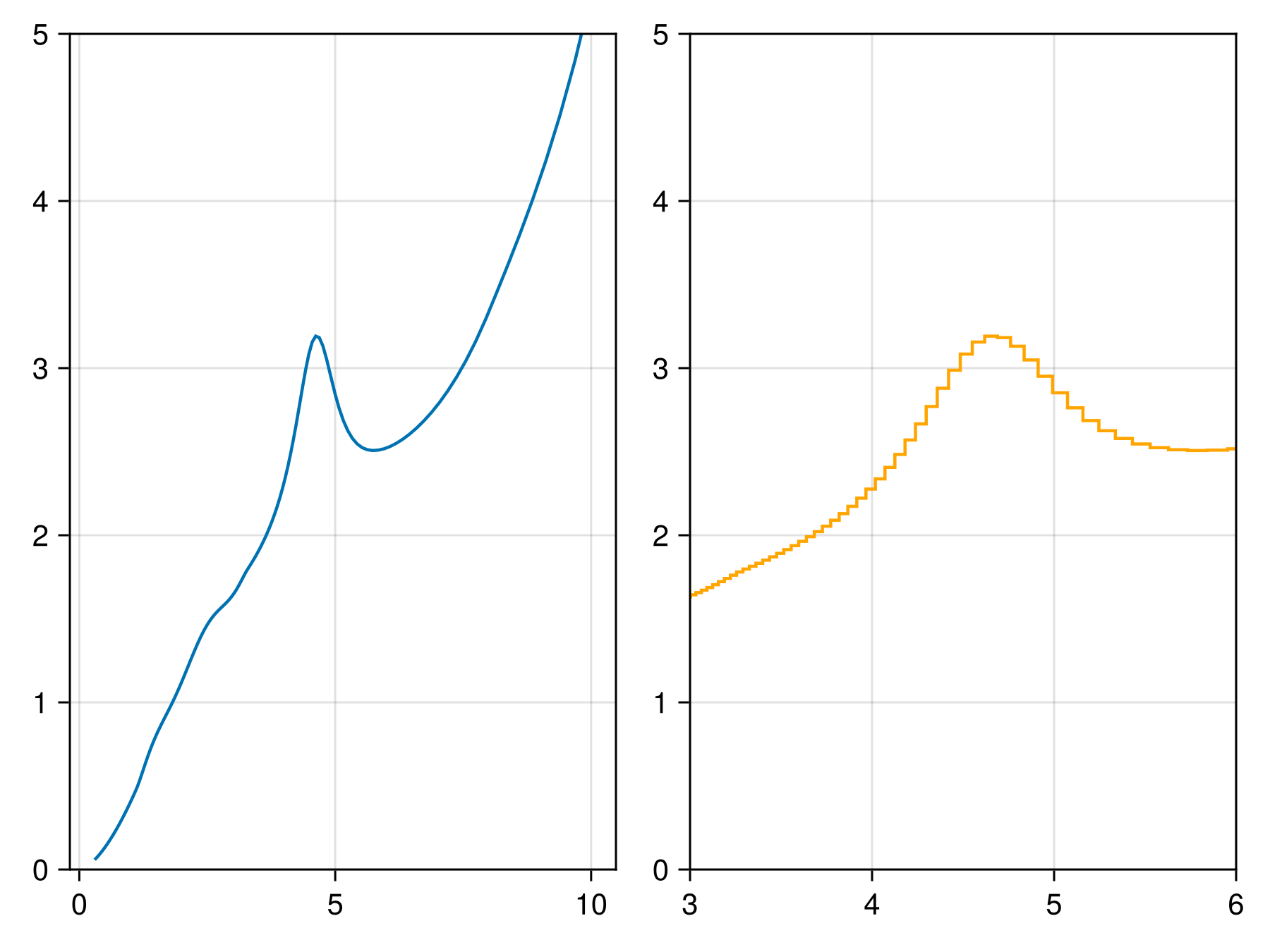

# Custom limits
fig = Figure()
ax1 = Axis(fig[1, 1])
ax2 = Axis(fig[1, 2]; limits=(3, 6, 0, 5))

lines!(ax1, model)
stairs!(ax2, model; color=:orange)

linkyaxes!(ax1, ax2)

fig

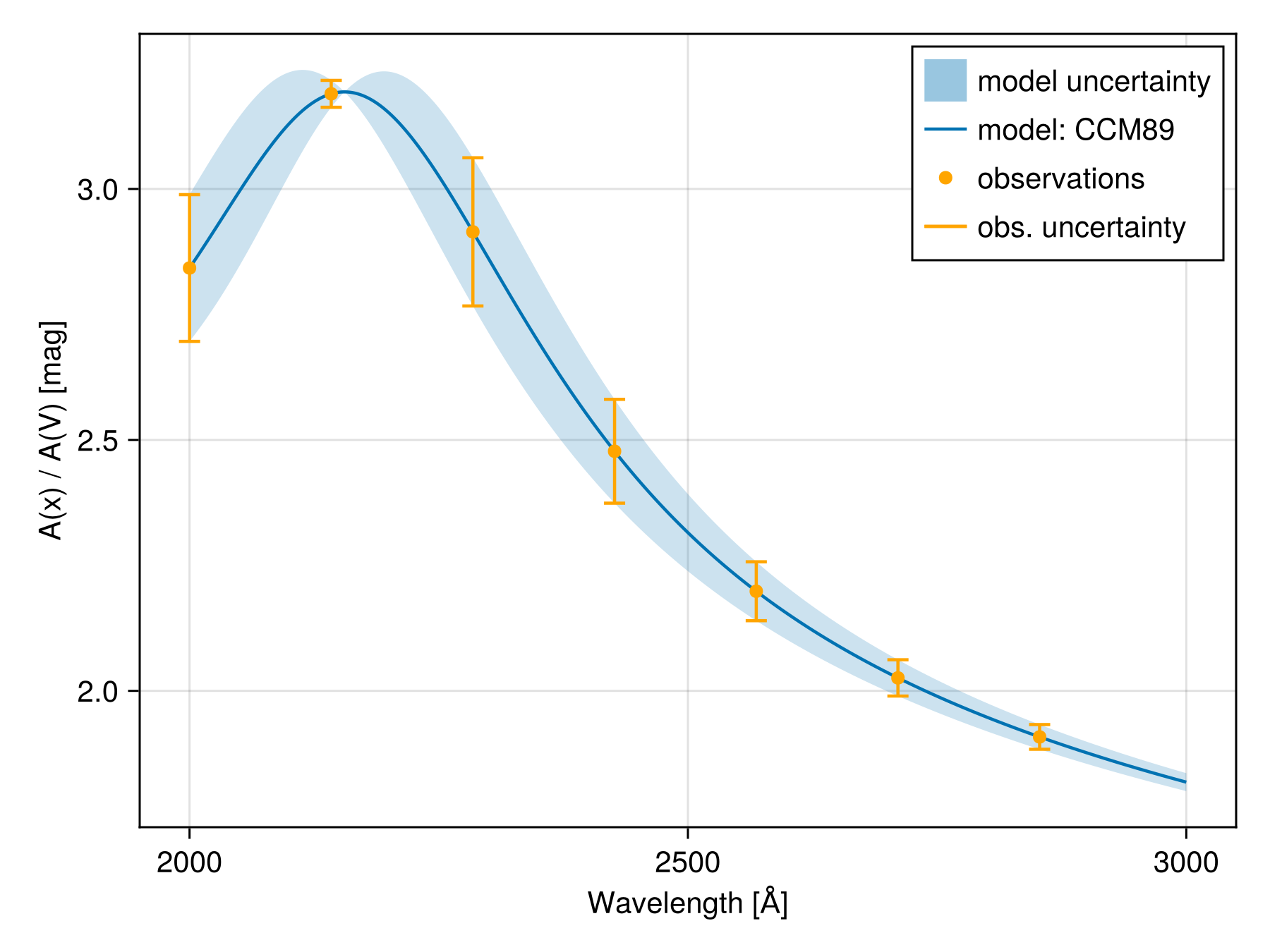

A predefined vector of wavelengths can also be passed to these plotting functions directly. Let's combine this with Makie's integration with Measurements.jl to visualize the underlying uncertainty in our data:

using Measurements, Unitful, UnitfulAstro

wavs = let
    x = range(2_000, 3_000; length=1_000)
    x = x .± 1e5 * inv.(ustrip.(x)) # "Å"
end

extinction = model.(wavs) # mag

wavs_sampled, extinction_sampled = let
    N_samples = 7
    wavs[range(begin, step=end ÷ N_samples; length=N_samples)],
    extinction[range(begin, step=end ÷ N_samples; length=N_samples)]
end

fig, ax, p = band(wavs, extinction; alpha=0.5, label="model uncertainty")

lines!(ax, wavs, extinction; label="model: CCM89")

scatter!(ax, wavs_sampled, extinction_sampled; color=:orange, label="observations")

# Currently ambiguous for both x and y being Measurements
# so we focus on the y-uncertainty instead
errorbars!(ax, Measurements.value.(wavs_sampled), extinction_sampled;
    whiskerwidth = 10,
    color = :orange,
    label = "obs. uncertainty",
)

axislegend()
ax.xlabel = "Wavelength [Å]"
ax.ylabel = "A(x) / A(V) [mag]"

fig

Dust map example

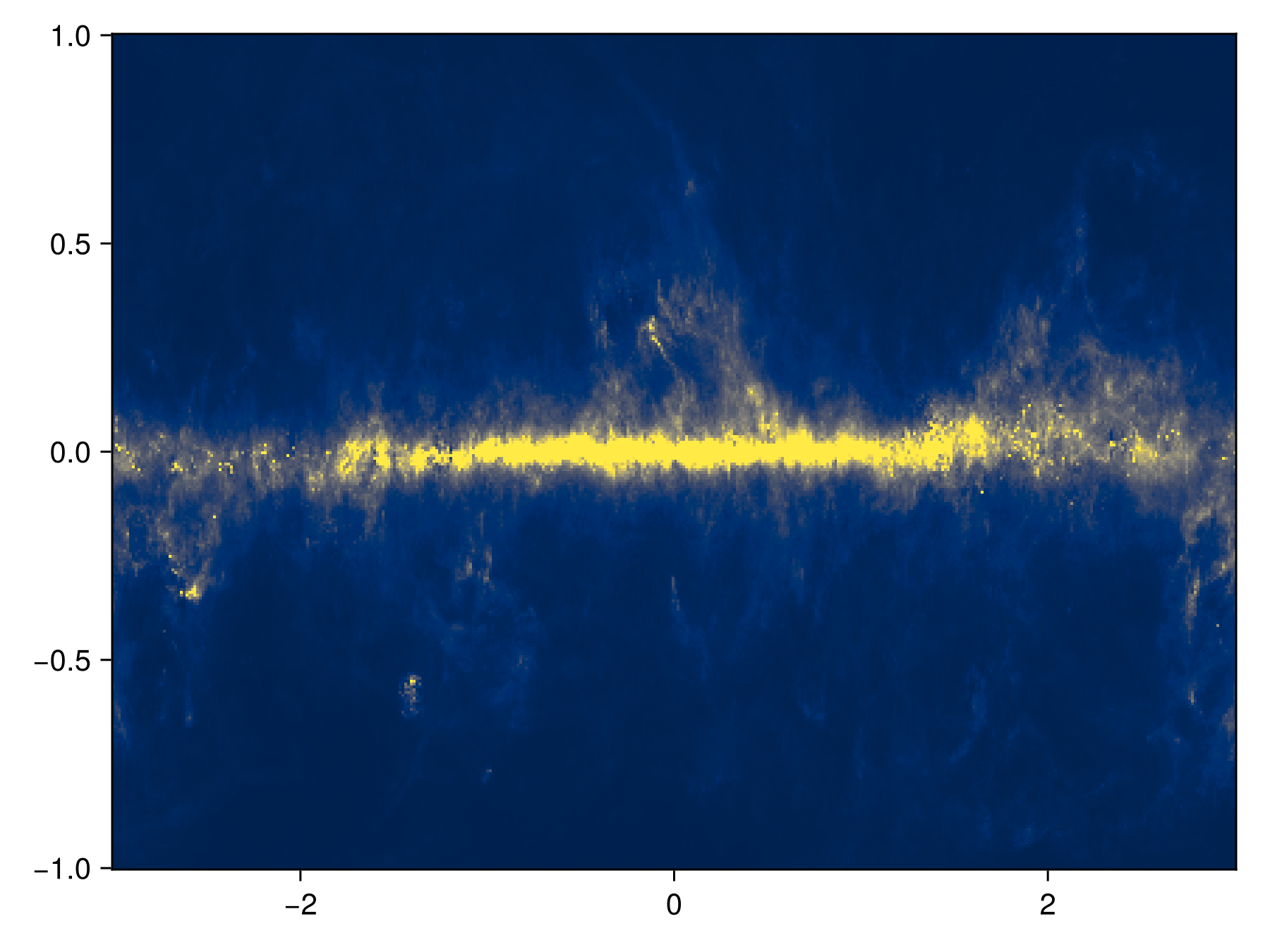

A heatmap plot also works automatically for DustExtinction.SFD98Map:

dustmap = SFD98Map()

heatmap(dustmap; colorrange=(0, 3), colormap=:cividis) # Or plot(dustmap; [plot kwargs])

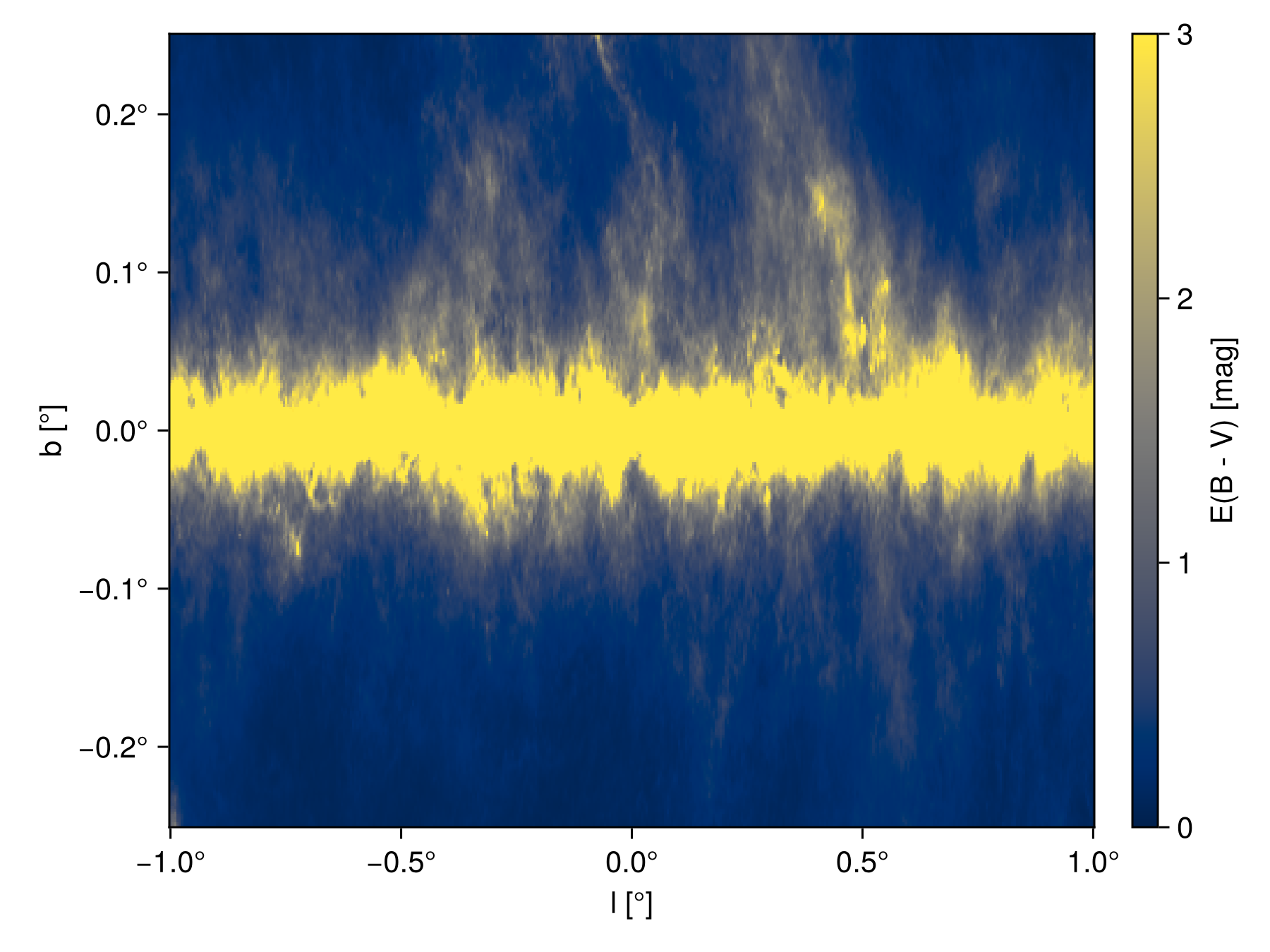

Similarly to the extinction law plots, we can create our own custom dust map plots. Here is an example using Unitful.jl's integration:

using Unitful

lrange = range(-1, 1; length=400)u"°"
brange = range(-0.25, 0.25; length=300)u"°"

fig, ax, p = heatmap(lrange, brange, dustmap; colorrange=(0, 3), colormap=:cividis)

ax.xlabel = "l [°]"
ax.ylabel = "b [°]"

Colorbar(fig[1, 2], p; label="E(B - V) [mag]")

fig
