RANSAC

Background

RANSAC (Random Sample Consensus) is a robust model-fitting algorithm introduced by (Fischler and Bolles, 1981). Unlike ordinary least-squares methods, which are sensitive to outliers, RANSAC explicitly divides the data into inliers (points well explained by the model) and outliers (points that are not), and seeks the model that maximises the size of the inlier set. It has become a foundational tool in computer vision, photogrammetry, and geometric estimation; a thorough treatment can be found in (Hartley and Zisserman, 2004).

The algorithm

Given a dataset of $N$ points, the minimum number of points $s$ needed to uniquely determine a model (e.g. $s = 2$ for a line, $s = 3$ for a plane), and an inlier distance threshold $t$, one iteration of RANSAC proceeds as follows:

1. Hypothesis — draw a random minimal sample of $s$ points and fit a candidate model to them.
2. Verification — evaluate every data point against the candidate model; collect those within distance $t$ as its consensus set (inlier set).
3. Update — if the consensus set is larger than the current best, record the candidate model and its inlier set.

The number of iterations is chosen adaptively so that, with probability $p$ (typically 0.99), at least one drawn sample is free from outliers. If the current best inlier fraction is $\varepsilon$, the expected number of trials required is

\[N = \frac{\log(1 - p)}{\log\!\left(1 - \varepsilon^s\right)}.\]

RANSAC updates this estimate after each improvement, allowing it to terminate early when a satisfying model is found quickly.

When to use RANSAC

RANSAC is well suited to problems where

• the fraction of outliers is large (up to 50 % or more),
• the inlier noise is small relative to the outlier spread, and
• the fitting step for the minimal sample is fast.

It is less suitable when the minimum sample size $s$ is large (the required number of trials grows exponentially with $s$) or when computing the full-dataset residuals is expensive.

API

ransac(x, fittingfn, distfn, s, t;
       rng = Random.default_rng(),
       degenfn = _ -> false,
       verbose = false,
       max_data_trials = 100,
       max_trials = 1000,
       p = 0.99)

Example: fitting a line in the presence of outliers

The following example generates 100 inlier points near the line $y = 2x + 3$, adds 100 outliers scattered over a wider region, and uses RANSAC to recover the true parameters.

using ConsensusFitting
using Random
using CairoMakie

Random.seed!(42)

# ── Generate synthetic data ────────────────────────────────────────────────
a_true, b_true = 2.0, 3.0
n_inliers  = 100
n_outliers = 100

x_in = collect(range(-10.0, 10.0; length=n_inliers))
y_in = a_true .* x_in .+ b_true .+ randn(n_inliers)

x_out = -10.0 .+ 20.0 .* rand(n_outliers)
y_out = -25.0 .+ 50.0 .* rand(n_outliers)

# Pack into a 2 × N matrix (each column is one data point [x; y])
data = [vcat(x_in, x_out)'; vcat(y_in, y_out)']

# ── Define the fitting and distance functions ──────────────────────────────

# Fit a line y = a*x + b through exactly 2 points.
function fit_line(pts)
    x1, y1 = pts[1, 1], pts[2, 1]
    x2, y2 = pts[1, 2], pts[2, 2]
    isapprox(x1, x2; atol=1e-10) && return []   # vertical line → degenerate
    a = (y2 - y1) / (x2 - x1)
    b = y1 - a * x1
    return [a, b]
end

# Classify points using their vertical (y-direction) residual.
function line_dist(M, x, t)
    a, b    = M[1], M[2]
    resid   = abs.(x[2, :] .- (a .* x[1, :] .+ b))
    inliers = findall(resid .< t)
    return inliers, M
end

# ── Run RANSAC ─────────────────────────────────────────────────────────────
M, inliers = ransac(data, fit_line, line_dist, 2, 2.0)

println("Recovered slope:     ", round(M[1]; digits=4), "  (true: $a_true)")
println("Recovered intercept: ", round(M[2]; digits=4), "  (true: $b_true)")
println("Inliers identified:  ", length(inliers), " / $(size(data, 2))")

Recovered slope:     1.9624  (true: 2.0)
Recovered intercept: 3.1463  (true: 3.0)
Inliers identified:  108 / 200

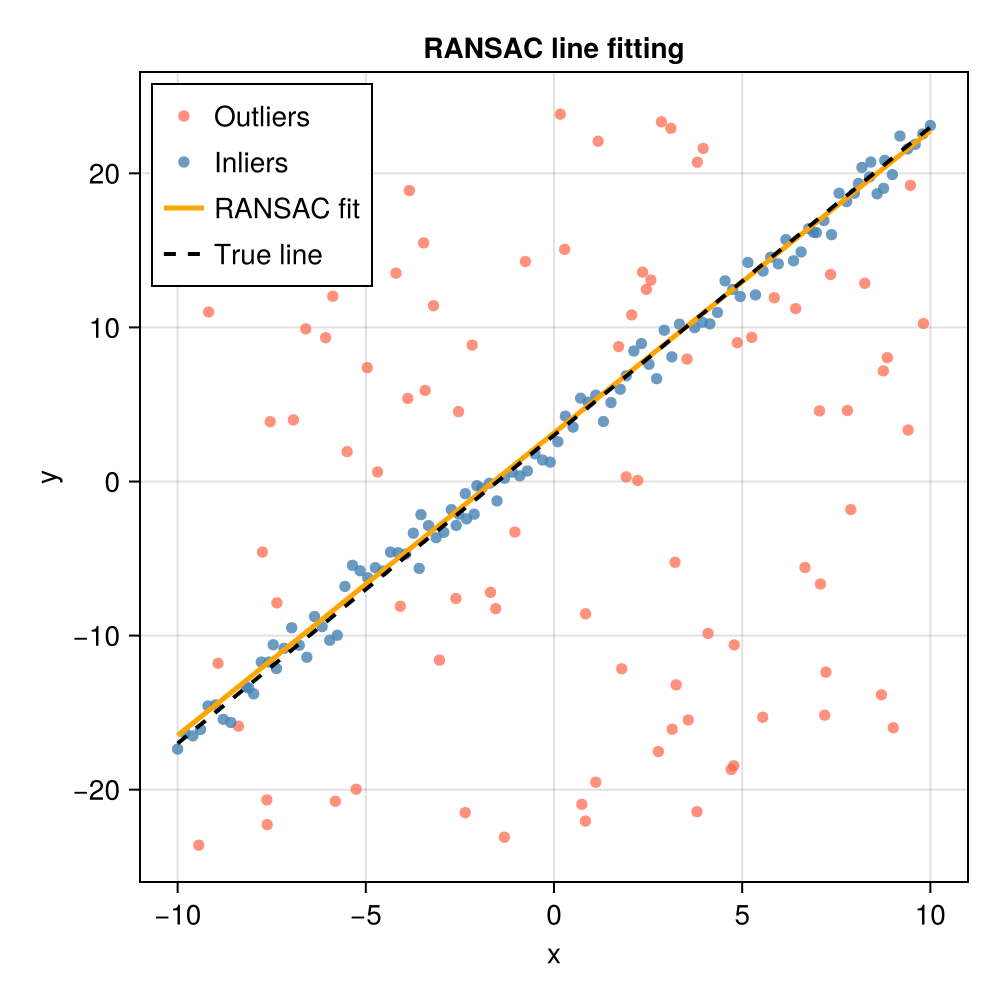

Visualising the result

outlier_mask = trues(size(data, 2))
outlier_mask[inliers] .= false

fig = Figure(size=(500, 500))
ax  = Axis(fig[1, 1];
           xlabel="x", ylabel="y",
           title="RANSAC line fitting")

# All data points
scatter!(ax, data[1, outlier_mask], data[2, outlier_mask];
         color=(:tomato, 0.7), markersize=8, label="Outliers")
scatter!(ax, data[1, inliers], data[2, inliers];
         color=(:steelblue, 0.8), markersize=8, label="Inliers")

# True and recovered lines
x_plot = range(-10.0, 10.0; length=200)
lines!(ax, x_plot, M[1] .* x_plot .+ M[2];
       color=:orange, linewidth=2.5, label="RANSAC fit")
lines!(ax, x_plot, a_true .* x_plot .+ b_true;
       color=:black, linewidth=2, linestyle=:dash, label="True line")

axislegend(ax; position=:lt)
fig

Once the inlier set has been identified, a final fit can be performed to the set of all inliers if desired.

using LinearAlgebra: dot

"""
    fit_line_overconstrained(data)

Fit a line y = a + b*x to data given as a 2×N matrix:
    data[1, :] = x
    data[2, :] = y

# Returns
  - `θ` :[a, b] (slope, intercept)
  - `Σθ`: covariance matrix of θ (2×2)
  - `σ²`: estimated residual variance
"""
function fit_line_overconstrained(data)
    @assert size(data, 1) == 2 "Input must be a 2×N matrix"
    x = view(data, 1, :)
    y = view(data, 2, :)
    N = length(x)
    @assert N ≥ 2 "Need at least two points"
    # Least-squares solution
    A = hcat(x, ones(N)) # Design matrix: [x 1]
    θ = A \ y   # equivalent to (A'A)^(-1)A'y but more stable
    r = y - A * θ # Residuals
    # Degrees of freedom: N - number of parameters (2)
    dof = N - 2
    @assert dof > 0 "Need more than 2 points for covariance estimate"
    # Residual variance estimate
    σ² = dot(r, r) / dof
    # Covariance matrix: σ² * (A'A)^(-1)
    Σθ = σ² * inv(A' * A)
    return θ, Σθ, σ²
end

μ, Σθ, σ² = fit_line_overconstrained(data[:, inliers])
println("Recovered slope:     ", round(μ[1]; digits=4), " ± ", round(sqrt(Σθ[1,1]); digits=4), "  (true: $a_true)")
println("Recovered intercept:     ", round(μ[2]; digits=4), " ± ", round(sqrt(Σθ[2,2]); digits=4), "  (true: $b_true)")

Recovered slope:     1.9702 ± 0.0146  (true: 2.0)
Recovered intercept:     2.9113 ± 0.0856  (true: 3.0)
