Roman

Adapted from STScI Roman Notebooks.

In this example, we show how to use ASDF.jl to load and view some simulated astronomical data created in preparation for the future (Nancy Grace Roman Space Telescope) mission.

Load

julia> fpath = let
           data_dir = joinpath("..", "..", "data")
           mkpath(data_dir)
           joinpath(data_dir, "roman.asdf")
       end;
julia> if !isfile(fpath)
           using AWSS3, AWS
           aws_config = AWS.AWSConfig(; creds = nothing, region = "us-east-1")
           AWSConfig(nothing, "us-east-1", "json", 3)

           # This is a large file, will take some time to download
           s3_get_file(
               aws_config,
               "stpubdata",
               "roman/nexus/soc_simulations/tutorial_data/r0003201001001001004_0001_wfi01_f106_cal.asdf",
               fpath
           )
       end

julia> using ASDF
julia> af = load(fpath; extensions = true, validate_checksum = false)roman.asdf
├─ asdf_library::String
│  ├─ author::String | The ASDF Developers
│  ├─ homepage::String | http://github.com/asdf-format/asdf
│  ├─ name::String | asdf
│  └─ version::String | 4.1.0
├─ history::String
│  └─ extensions::Vector{OrderedCollections.OrderedDict{Any, Any}} | shape = (7,)
└─ roman::String
   ├─ amp33::ASDF.NDArray | shape = [5, 4096, 128]
   ├─ border_ref_pix_bottom::ASDF.NDArray | shape = [5, 4, 4096]
   ├─ border_ref_pix_left::ASDF.NDArray | shape = [5, 4096, 4]
   ├─ border_ref_pix_right::ASDF.NDArray | shape = [5, 4096, 4]
   ├─ border_ref_pix_top::ASDF.NDArray | shape = [5, 4, 4096]
   ├─ data::ASDF.NDArray | shape = [4088, 4088]
   ├─ dq::ASDF.NDArray | shape = [4088, 4088]
   ├─ dq_border_ref_pix_bottom::ASDF.NDArray | shape = [4, 4096]
   ├─ dq_border_ref_pix_left::ASDF.NDArray | shape = [4096, 4]
   ├─ dq_border_ref_pix_right::ASDF.NDArray | shape = [4096, 4]
   ├─ dq_border_ref_pix_top::ASDF.NDArray | shape = [4, 4096]
  ⋮  (198) more rows

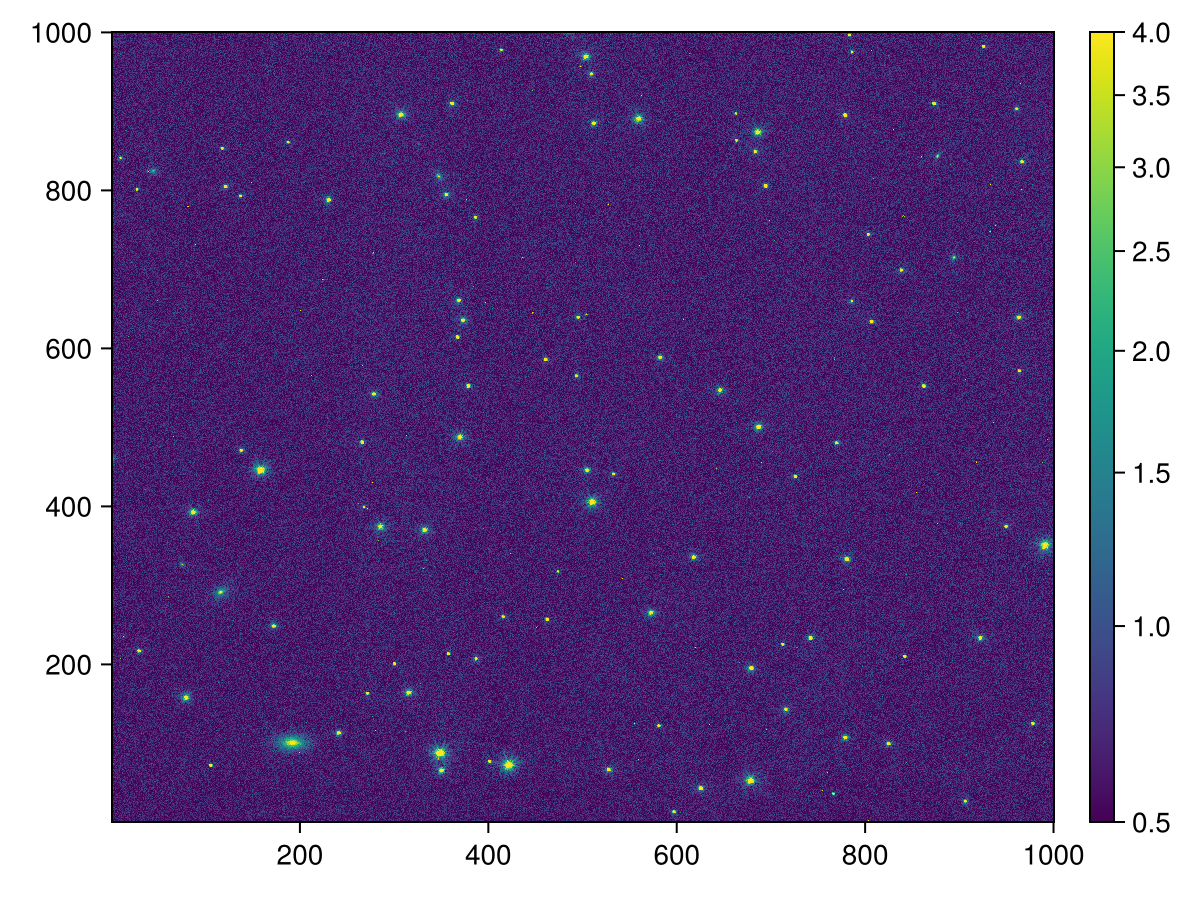

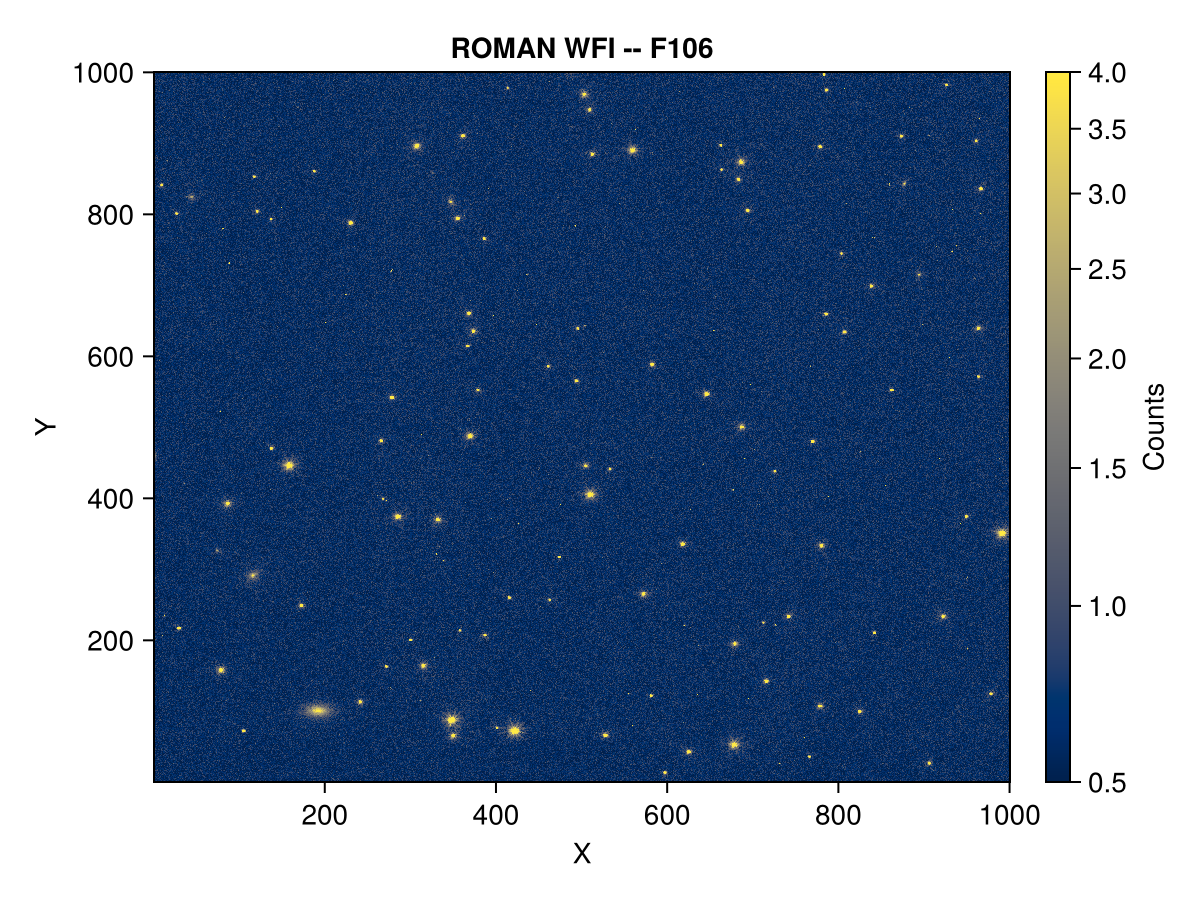

Plot

using CairoMakie

img = af["roman"]["data"][]

fig, ax, hm = heatmap(img[begin:1000, begin:1000]; colorscale = asinh, colorrange = (0.5, 4))

Colorbar(fig[1, 2], hm)

fig
